Description

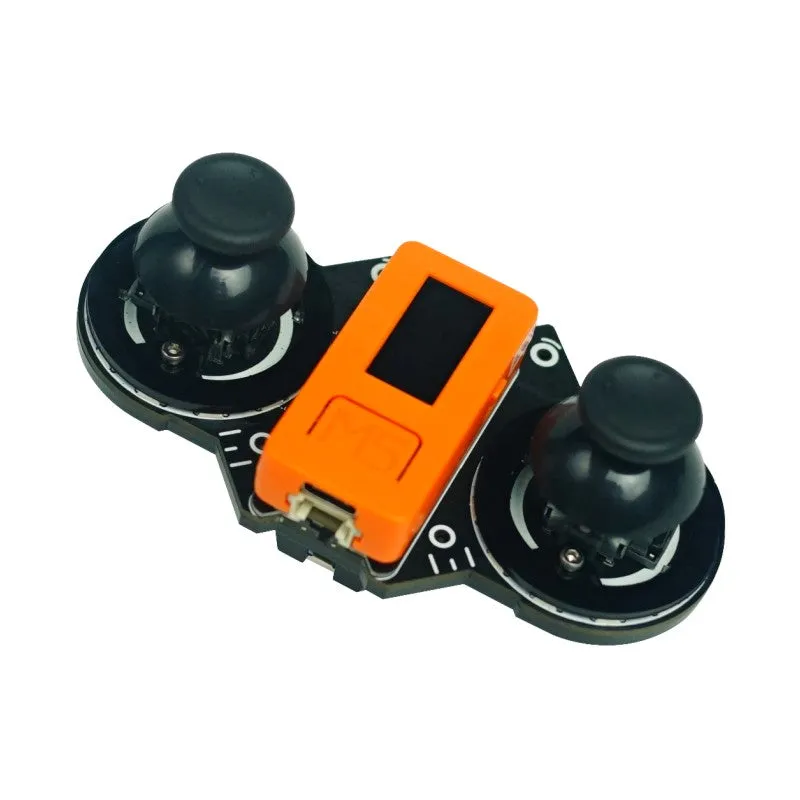

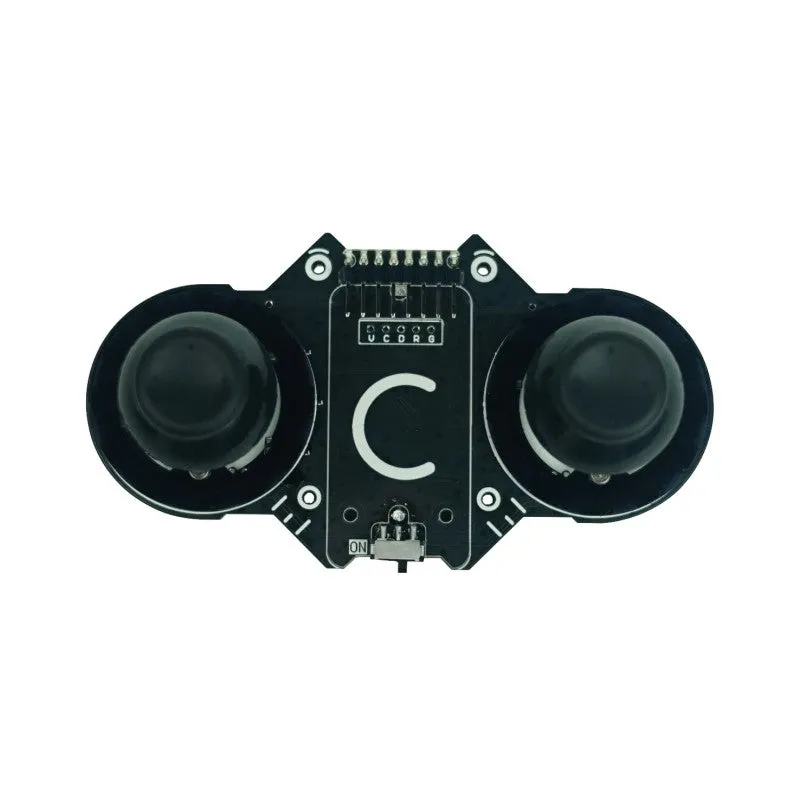

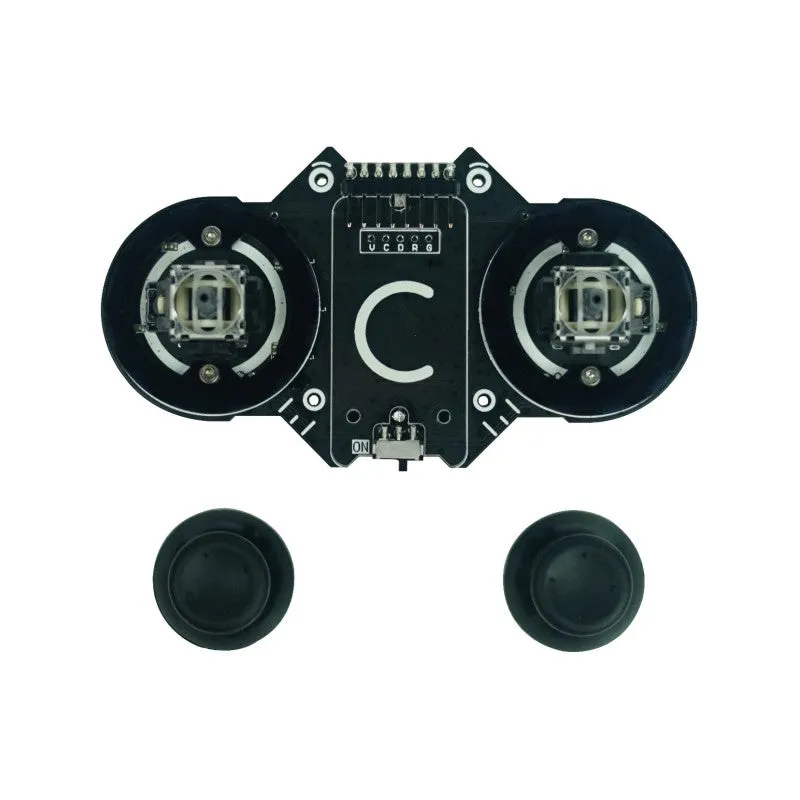

JoyC is a joystick module designed specifically for the M5StickC, allowing for dual-handed operation. It is embedded with an STM32F030F4 microcontroller chip and communicates with M5StickC via the I2C communication protocol. The joystick has a range of 0 to 200, and each side of the joystick is equipped with 12 RGB LEDs.

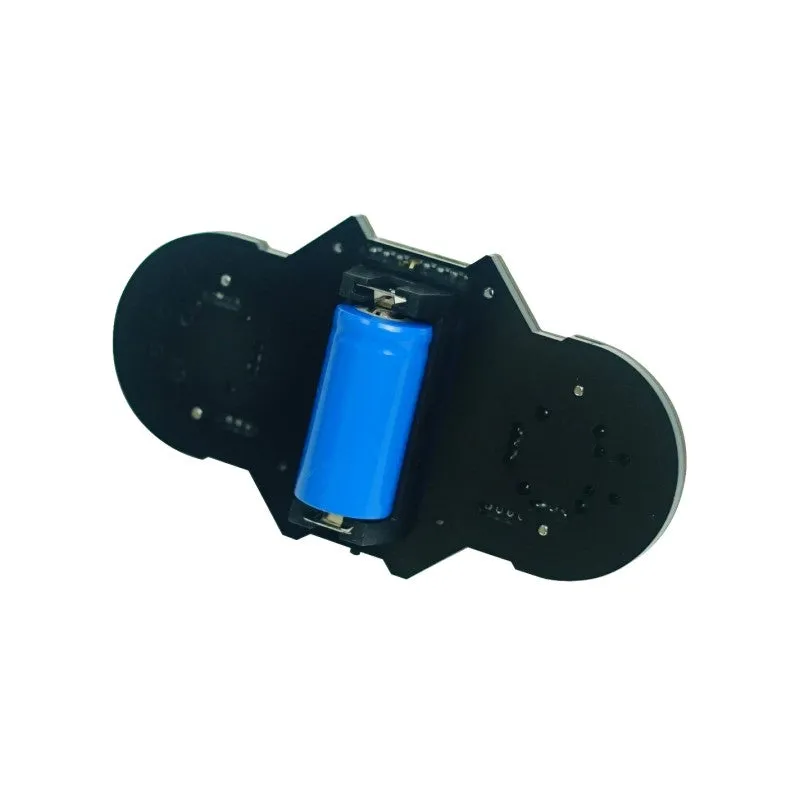

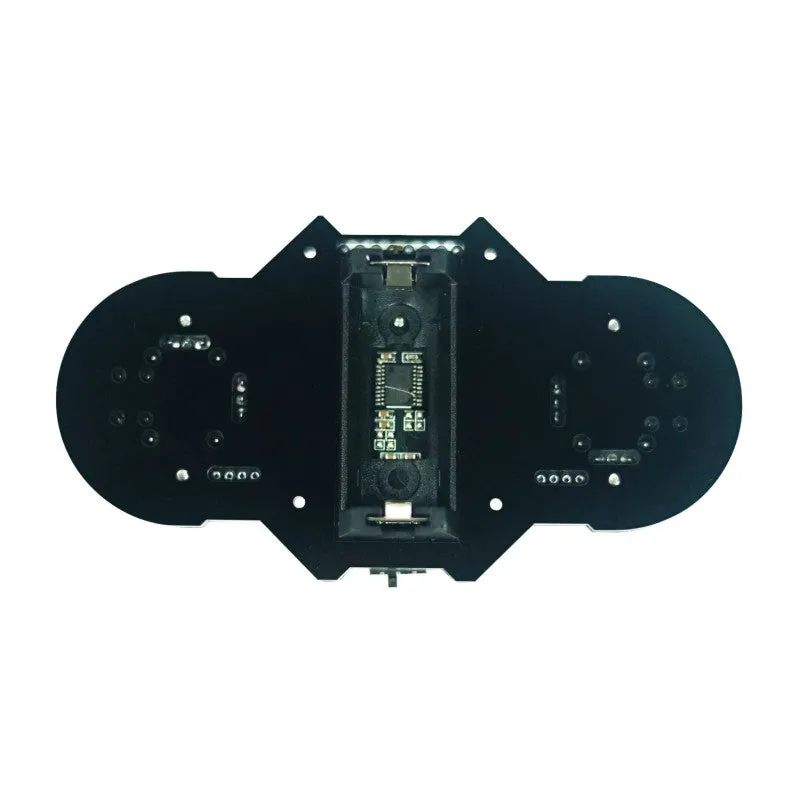

At the bottom of the joystick, there is a 16340 battery base, providing long-lasting battery life. This joystick supports full-angle offset and center pressing, allowing for output of angle offset data and switch digital signals.
Product Features
- STM32F030F4 inside
- communication protocol: I2C (address: 0x38)
- support omni-directional movement/button press
Include
- 1x JoyC
- 1x 16340 700mAh Battery
Applications
- Game Handle
- Wireless Joystick Device
Specification
| Resources | Parameter |
|---|---|
| Communication protocol | I2C:0x38 |
| Net weight | 81g |
| Gross weight | 117g |
| Product Size | 200*55*50mm |
| Package Size | 119*89*65mm |
