Product Details
＋
PRODUCT DETAILS
Description

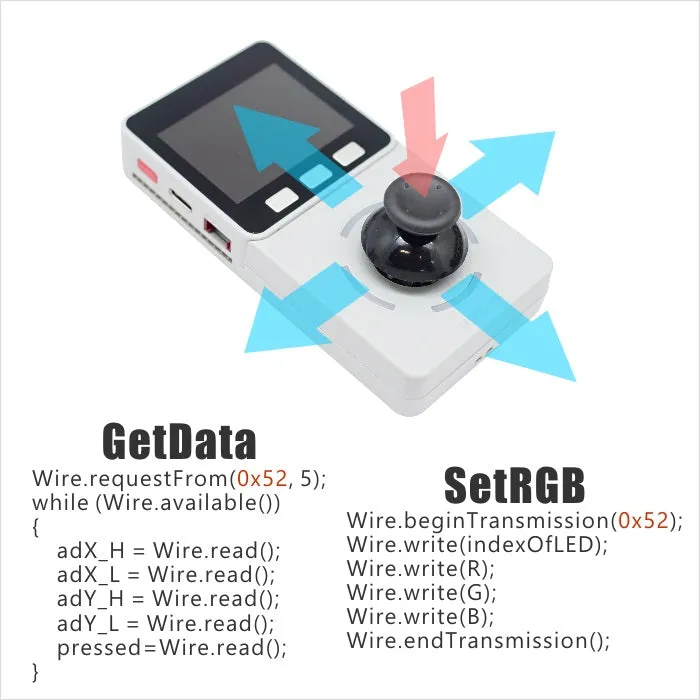

JOYSTICK is a joystick control panel compatible with the FACE kit. By pushing the joystick on the panel, you can input angle, direction and other data. Using the I2C communication protocol. It's possible to get the offset data of the joystick (X, Y coordinate) and the state of the middle button. An LED bar composed of 12 LEDs is embedded around the joystick. You can customize the luminous form of the LED light according to your needs.
This product is EOL now.
Product Features
- 4 RGB Led
- I2C communication
- Simple API for programming
Include
- 1x M5Stack JOYSTICK Module board
- 1x Joystick Bar
Specification
| Resources | Parameter |
|---|---|
| Net weight | 22g |
| Gross weight | 50g |
| Product Size | 58*54*10mm |
| Package Size | 95*65*25mm |
